Technical Library

Specifications & downloads.

Downloadable spec sheets, profile drawings, glazing options and hardware libraries — the full FerroFinestra reference. More coming soon.

— Section 01

Profile Specifications

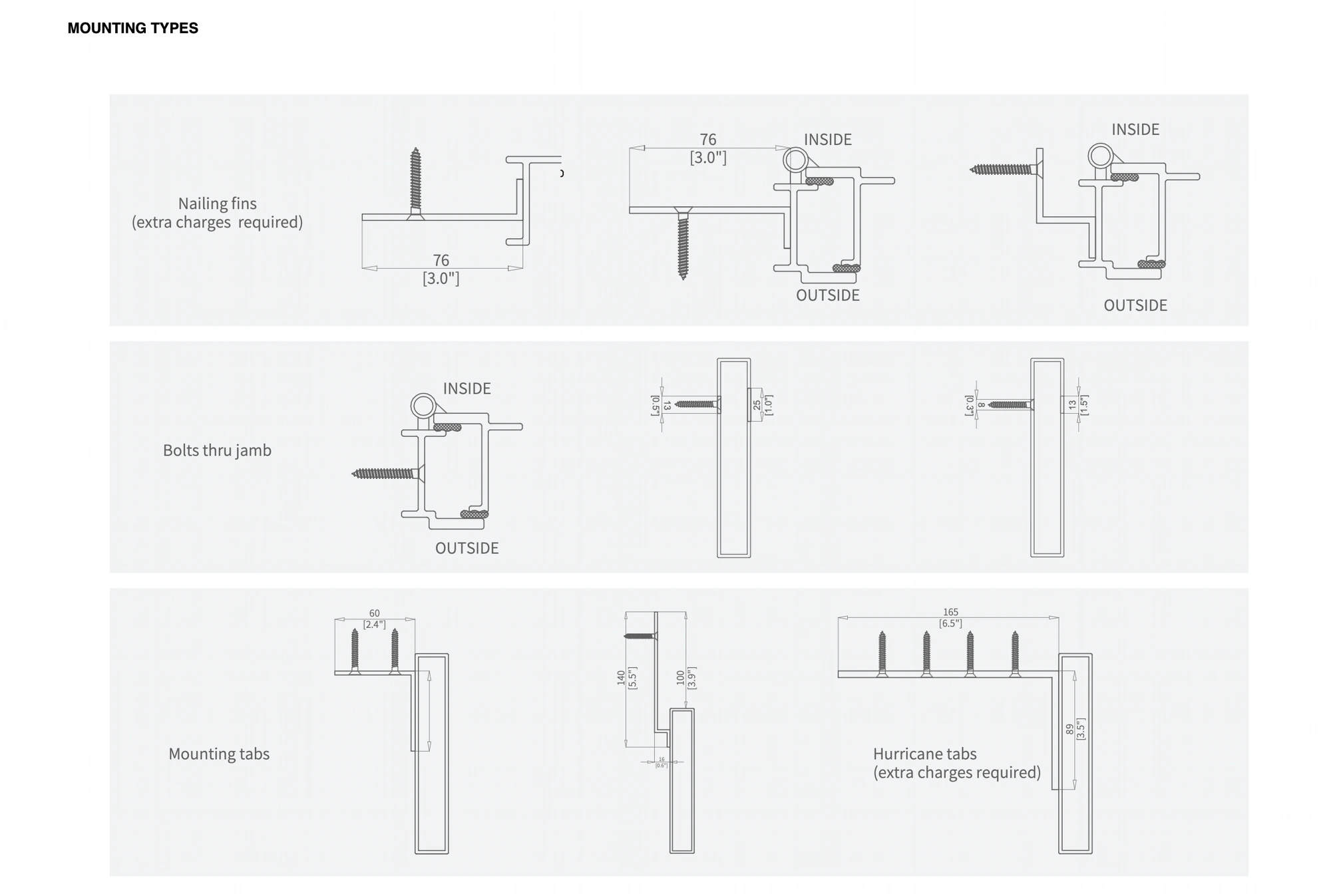

Every FerroFinestra profile, with dimensions, sight lines, glazing options and mounting detail. Tap to download the PDF spec sheet.

W20

W20 Steel

Single glazed · Internal

01

The slimmest FerroFinestra profile. Single-glazed steel with a minimal sight-line, designed for internal partitions, crittall-style screens and heritage restoration.

Download Spec Sheet · PDF

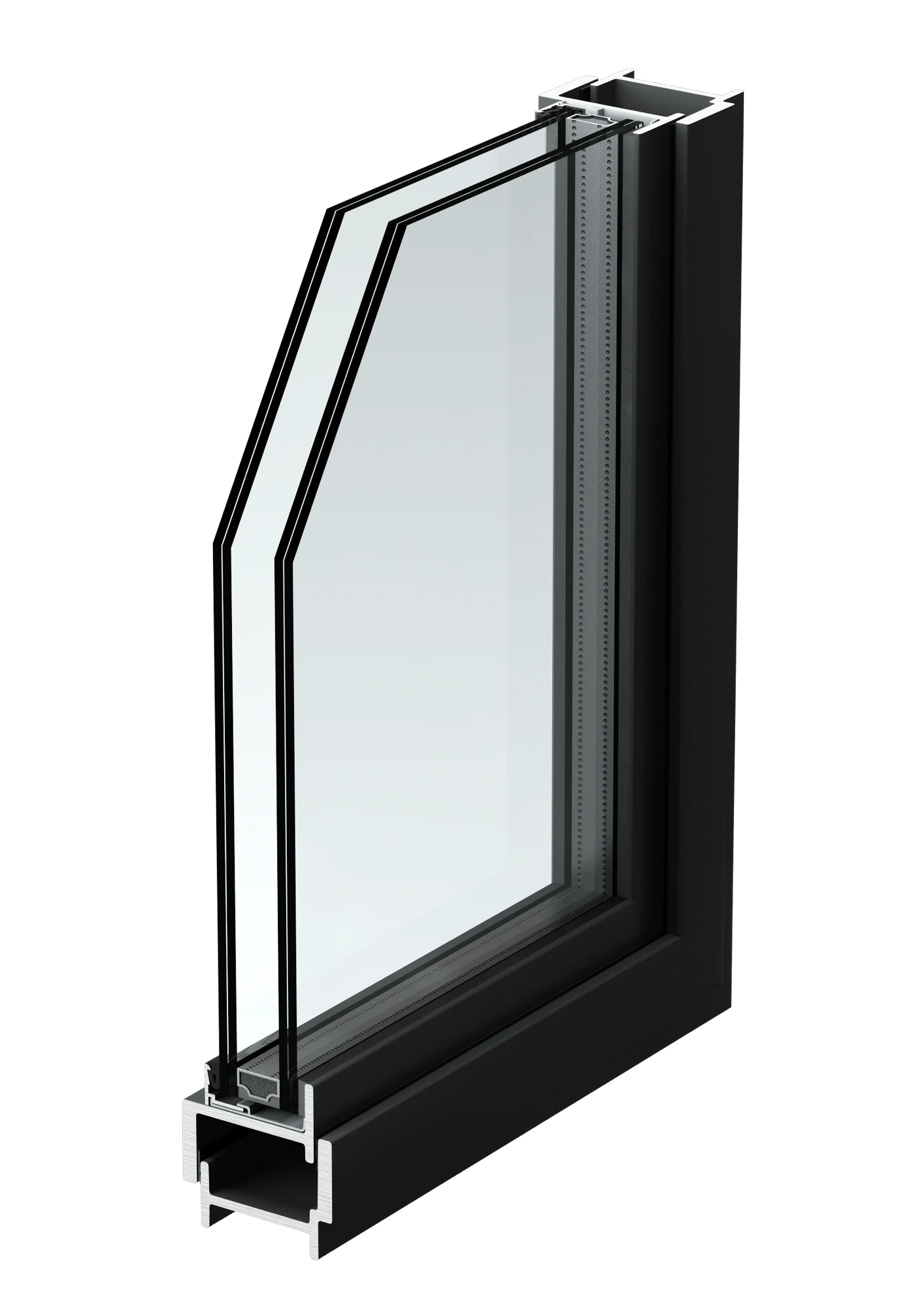

W40

W40 Steel

Double glazed · External

02

A 40mm cold-formed steel profile suitable for double glazing and external applications. The versatile choice for windows, doors and façades where thermal break is not required.

Download Spec Sheet · PDF

W50TB

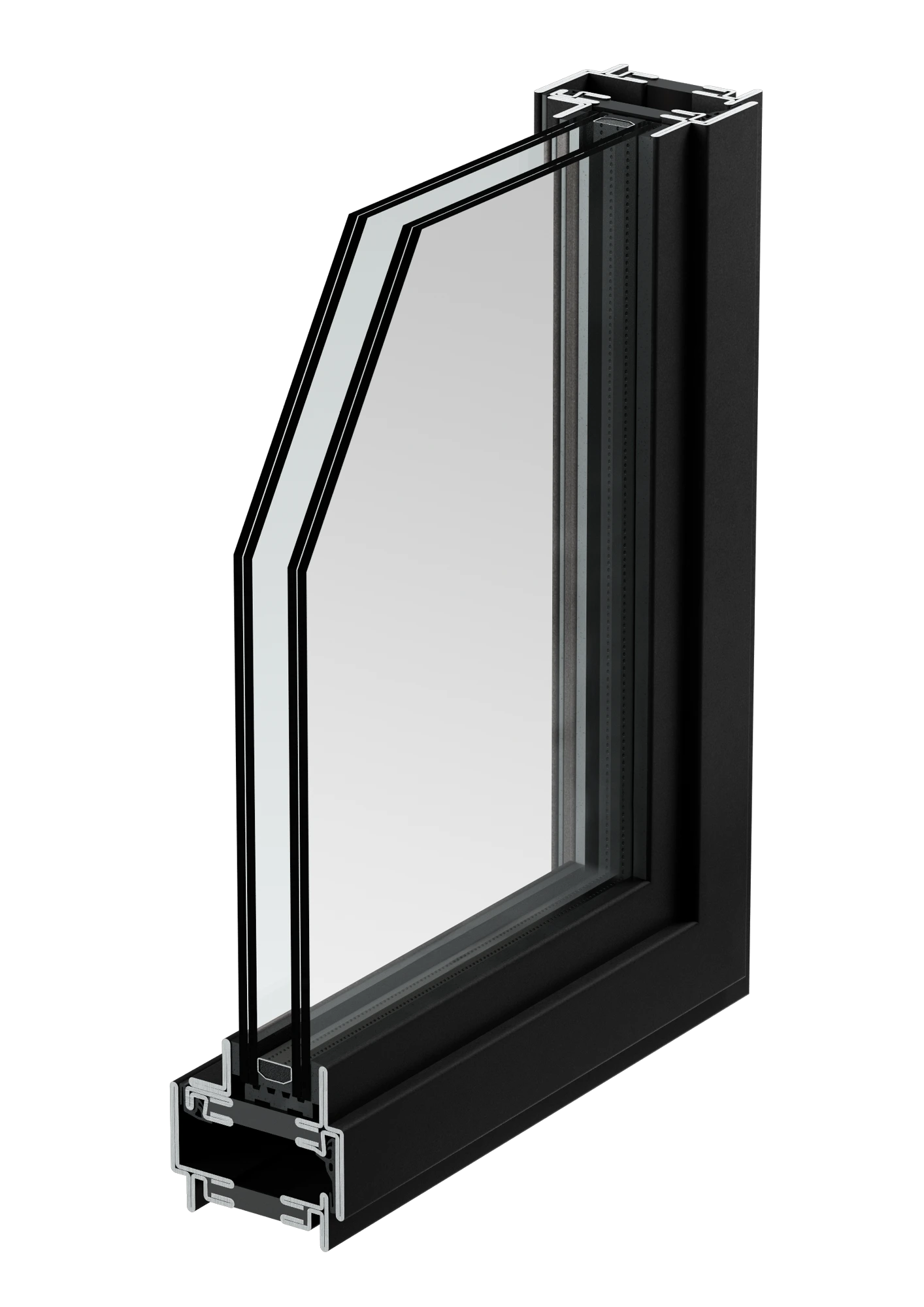

W50 TB Steel

Thermal break · External

03

Thermally-broken steel with a polyamide barrier. A 50mm profile that combines slim FerroFinestra sight-lines with contemporary energy performance for external openings.

Spec Sheet · Coming Soon

W75TB

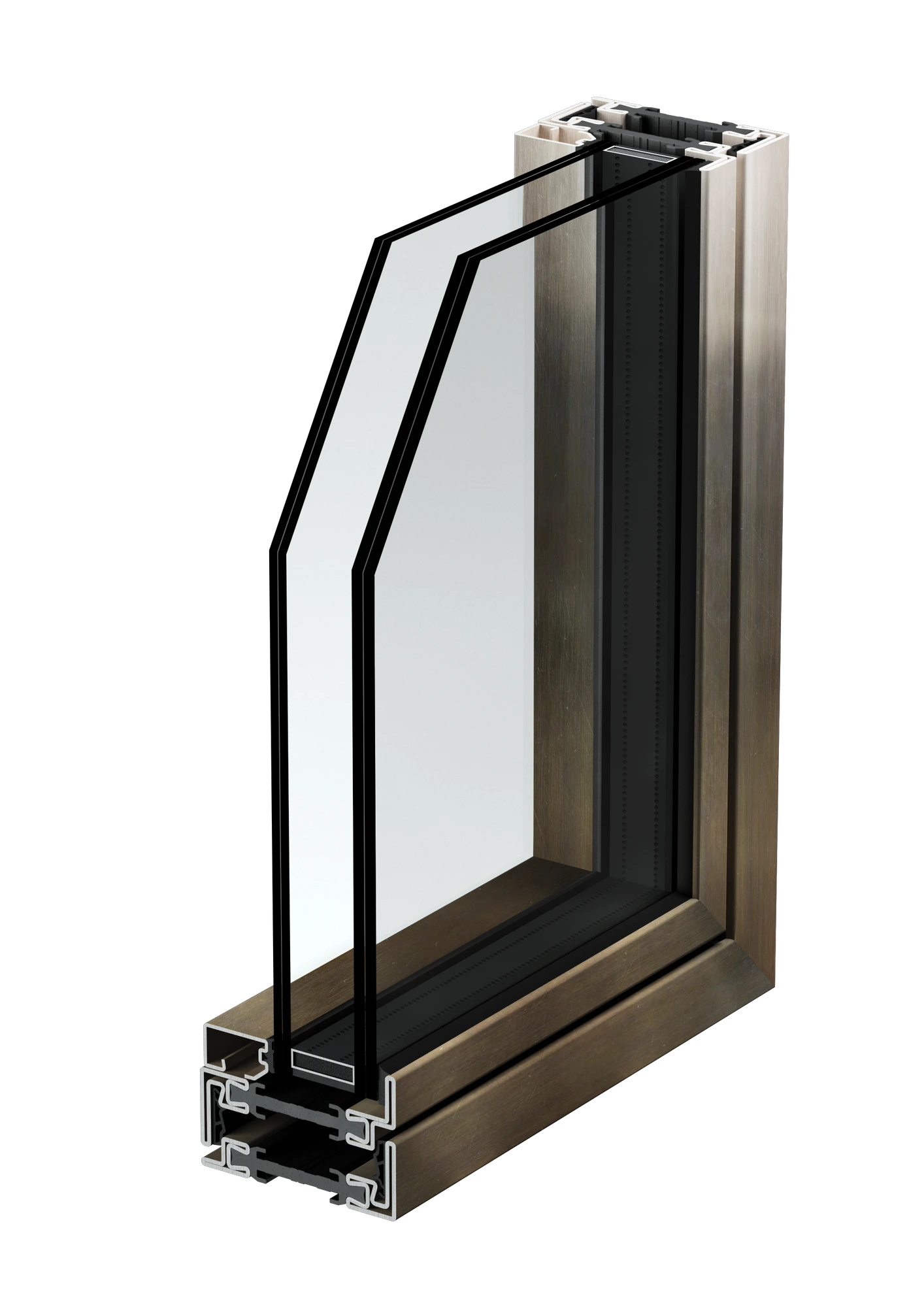

W75 TB Inox

Stainless · Thermal break

04

The flagship 75mm thermally-broken stainless-steel profile. Engineered for large-format doors, structural façades and marine-grade durability.

Spec Sheet · Coming Soon

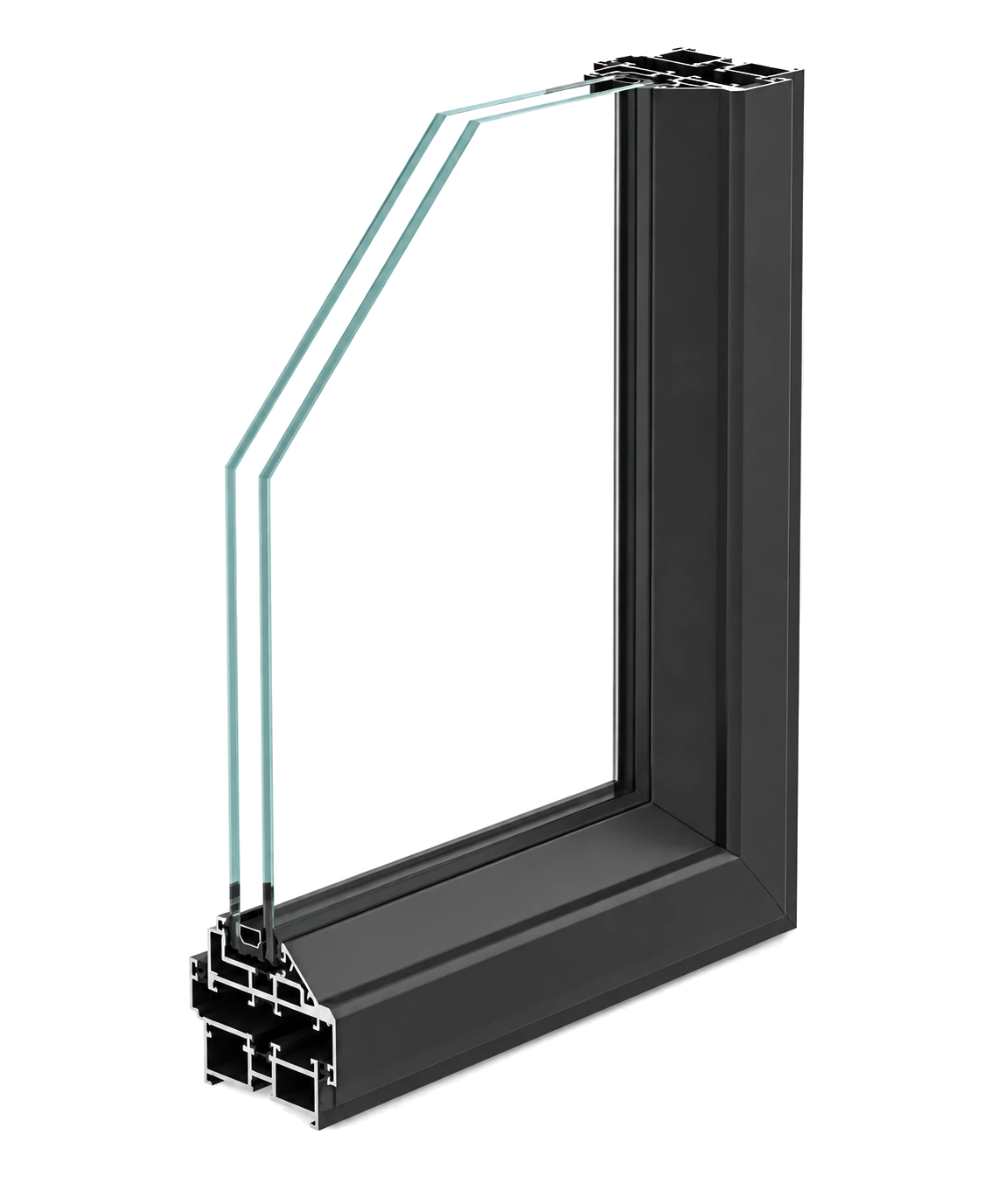

ALES65

ALES65 Aluminium

Aluminium Steel Look · Thermal break

05

A thermally-broken aluminium profile engineered with a true steel-look sight-line. The everyday choice for full-house glazing where you want the razor-thin aesthetic of steel with the price, weight and thermal performance of aluminium.

Spec Sheet · Coming Soon

— Section 02

Glazing Types

Standard glazing options across the Eurosteel range — from crystal float to obscured textured patterns. Photographed against a neutral backdrop so you can compare privacy and light transmission at a glance.

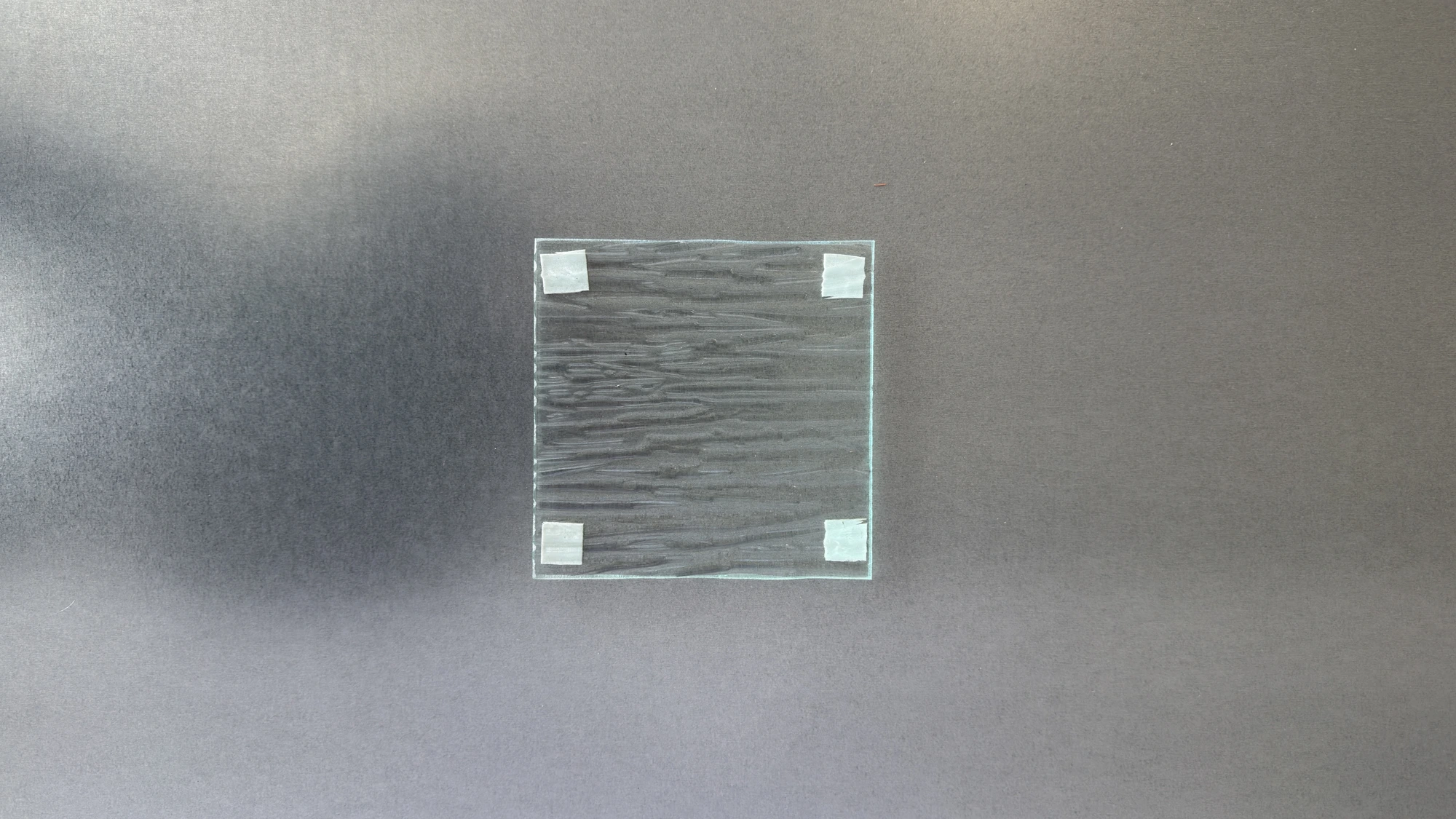

Rain glass sample — Rain
Vertical streaked texture — high privacy, soft daylight.

Flemish glass sample — Flemish
Gentle organic ripple — light obscure, timeless.

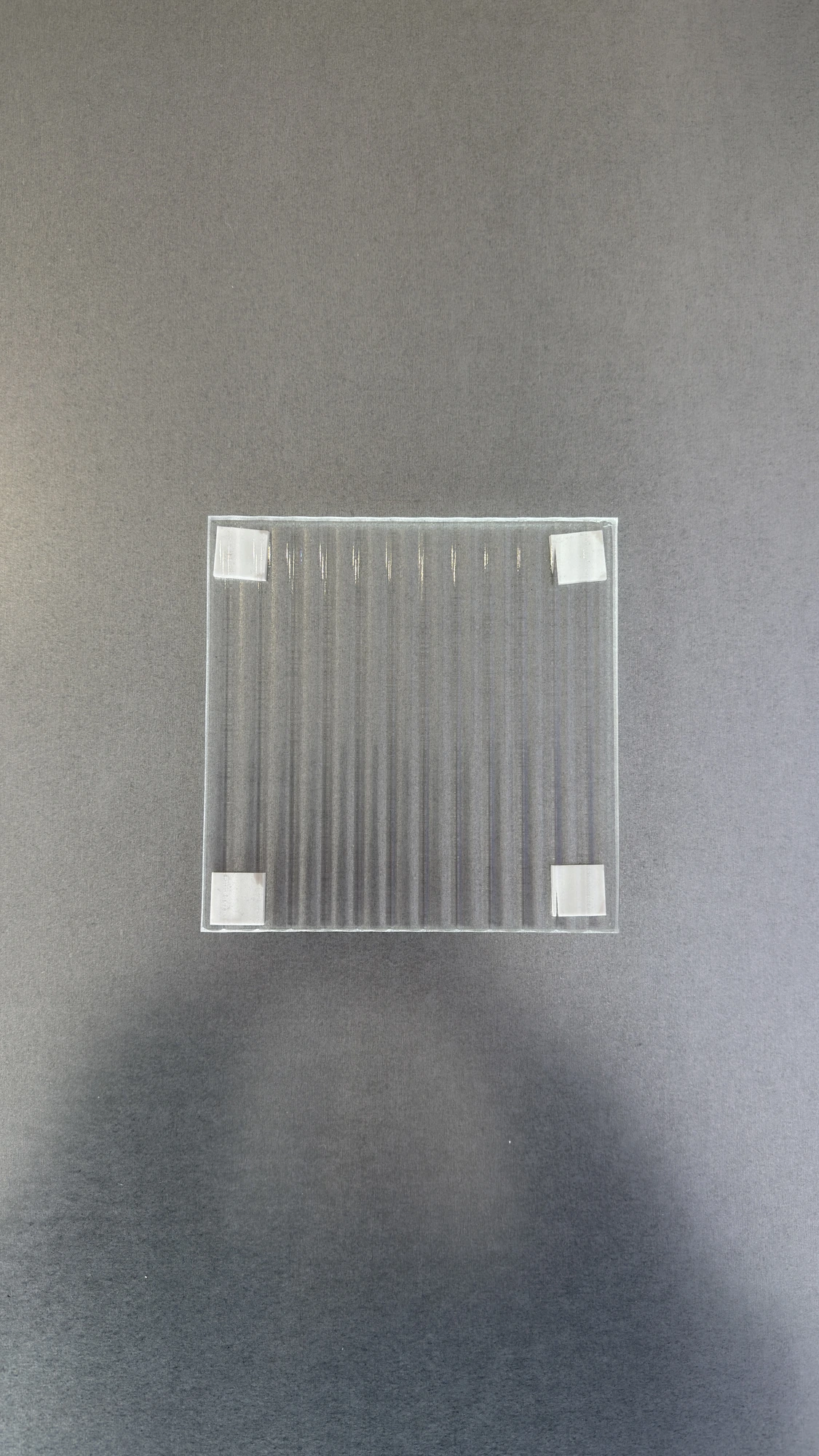

Fluted glass sample — Fluted
Ribbed vertical flutes — modern privacy with directional light.

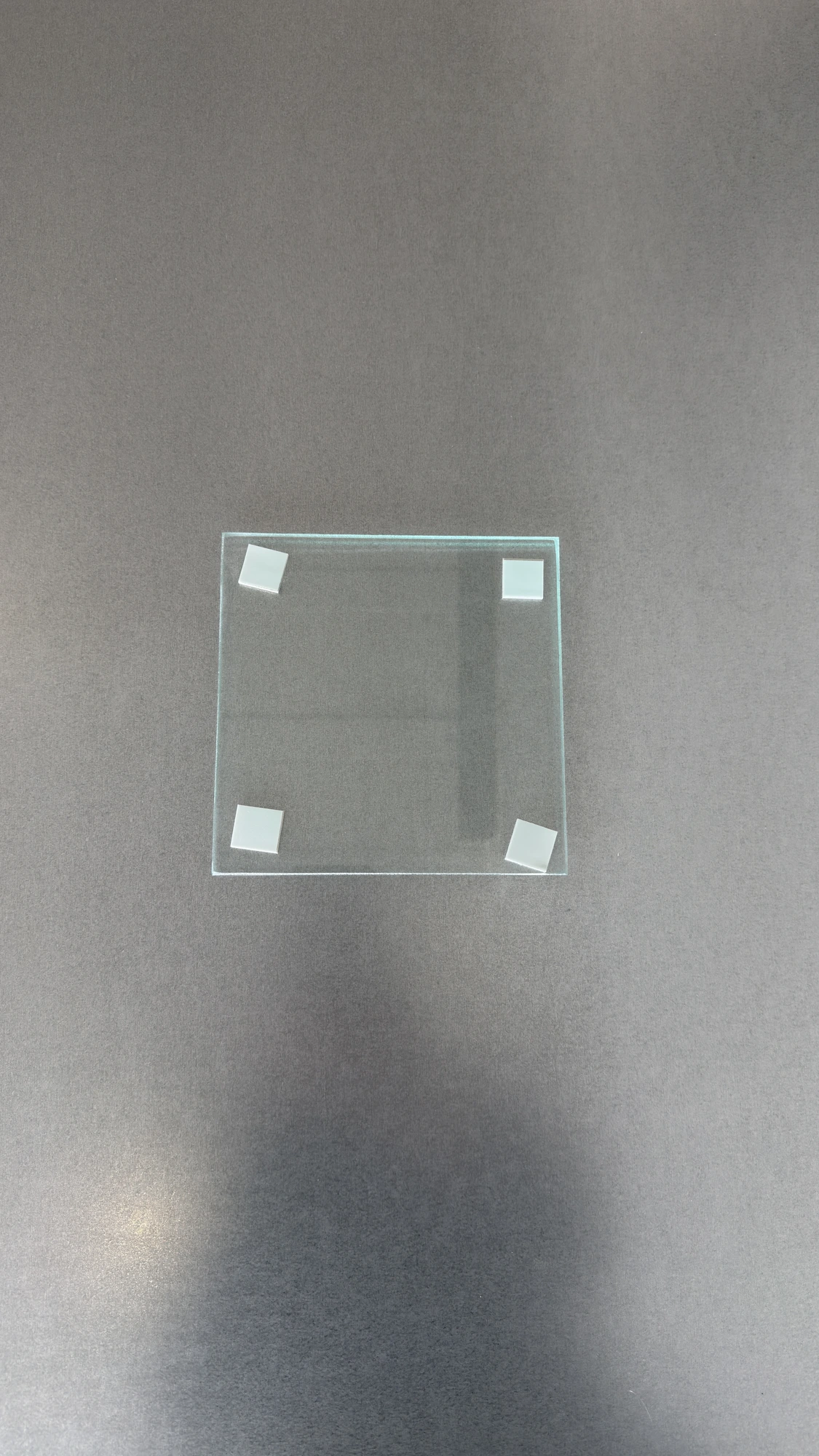

Clear glass sample — Clear
Standard float glass — maximum transparency.

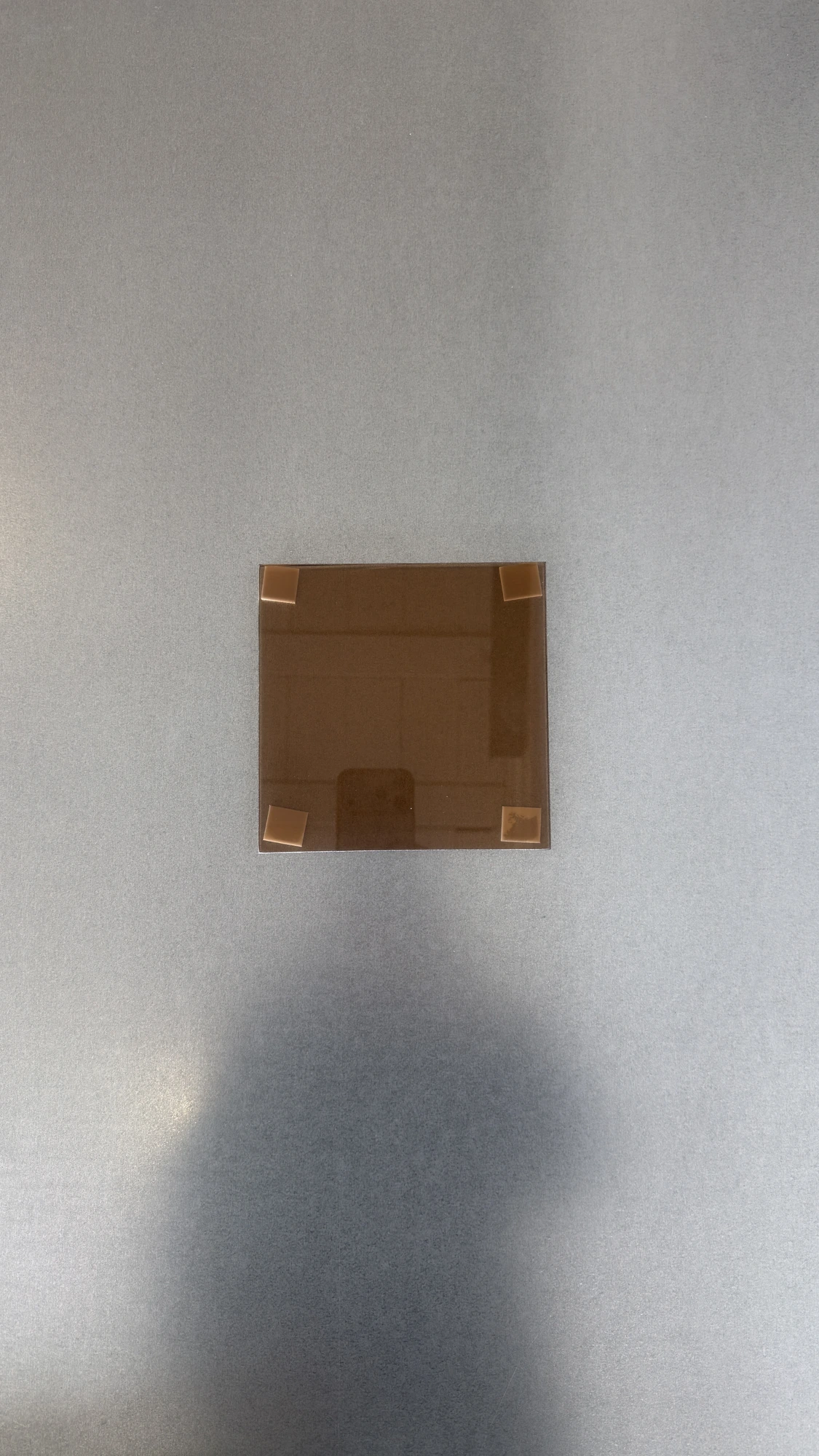

Tea glass sample — Tea
Warm bronze body tint — solar control with view retained.

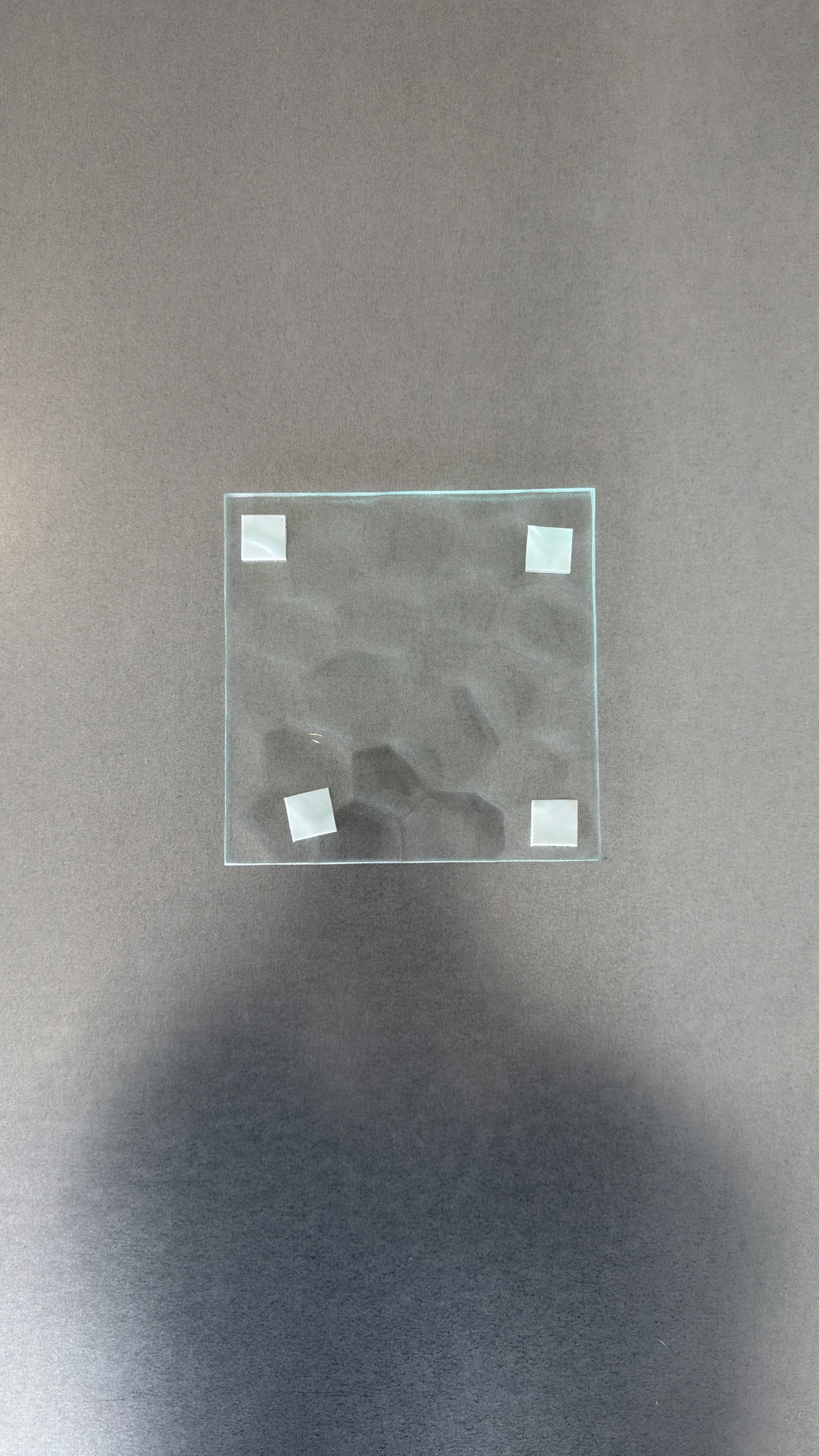

Watercube glass sample — Watercube
Faceted honeycomb texture — decorative privacy.

Compliance

Glass certified to AS/NZS 2208: 2023

Every pane specified through Eurosteel meets the Safety Glazing Materials in Buildings standard. Full range of thicknesses, coatings and interlayers available on request.

Types of product	Glass thickness (mm)	Glass colours	Grade	Coatings	Interlayer type	Interlayer thickness (mm)
Toughened	4 – 15	Clear, Ultra Clear, Grey, Bronze	A	—	—	—
Toughened	5 – 12	Clear, Ultra Clear	A	Low-E	—	—
Toughened Laminated	8 – 24	Clear, Ultra Clear, Grey, Bronze	A	—	PVB	0.76 – 3.04
Toughened Laminated	10 – 30	Clear, Ultra Clear, Grey, Bronze	A	—	SGP	0.76 – 3.04
Heat Strengthened Laminated	8 – 24	Clear, Ultra Clear, Grey, Bronze	A	—	PVB	0.76 – 3.04
Heat Strengthened Laminated	10 – 30	Clear, Ultra Clear, Grey, Bronze	A	—	SGP	0.76 – 3.04
Laminated	8 – 24	Clear, Ultra Clear, Grey, Bronze	A	—	PVB	0.38 – 1.52

Grade A denotes the highest safety classification for architectural glazing under AS/NZS 2208: 2023.

— Section 03

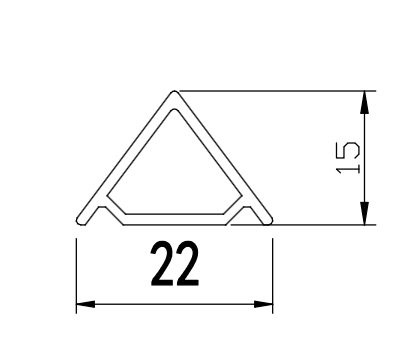

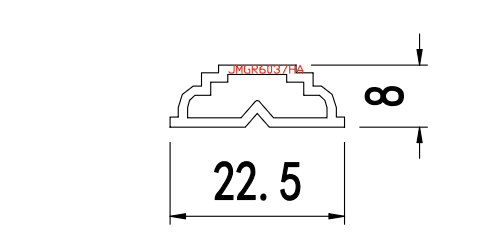

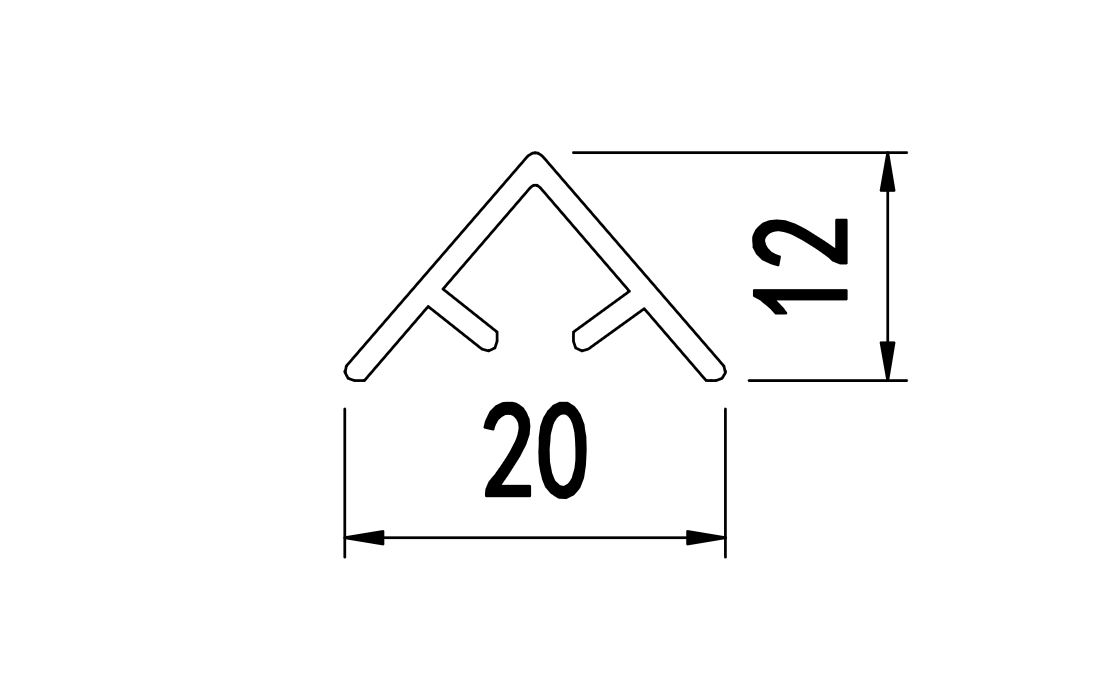

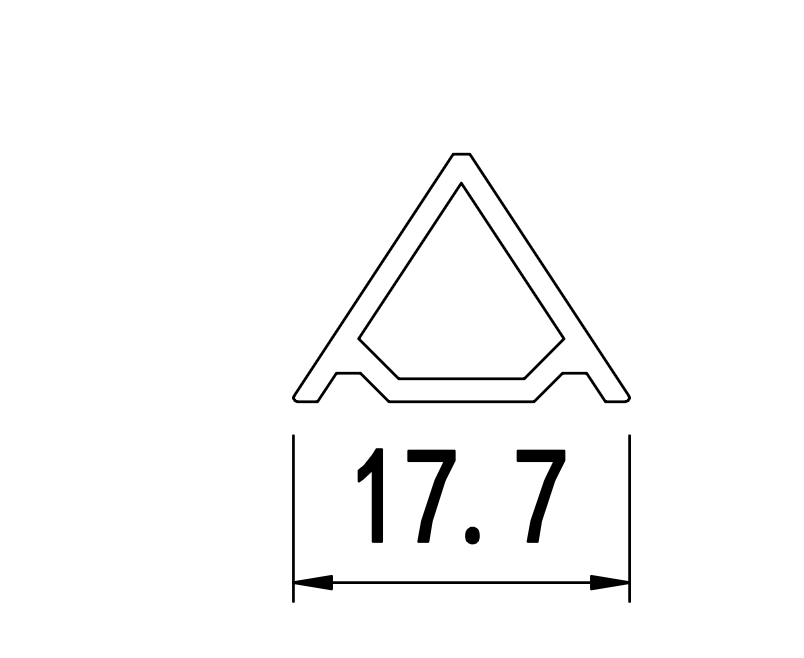

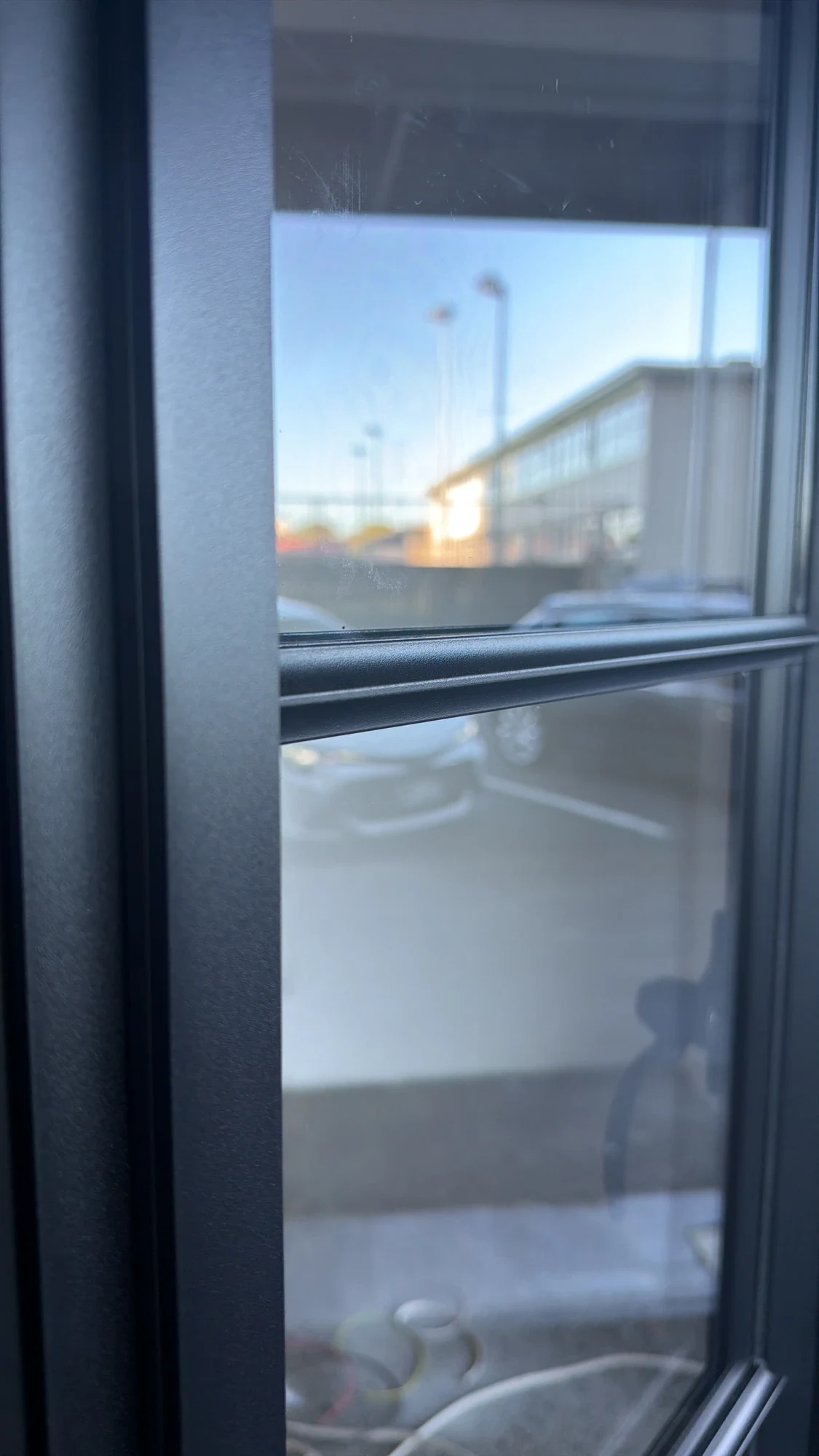

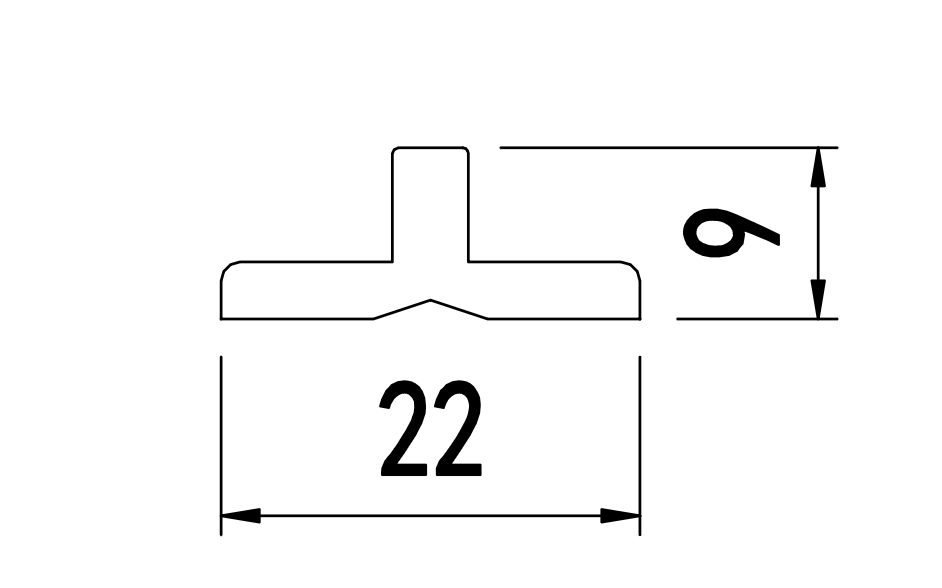

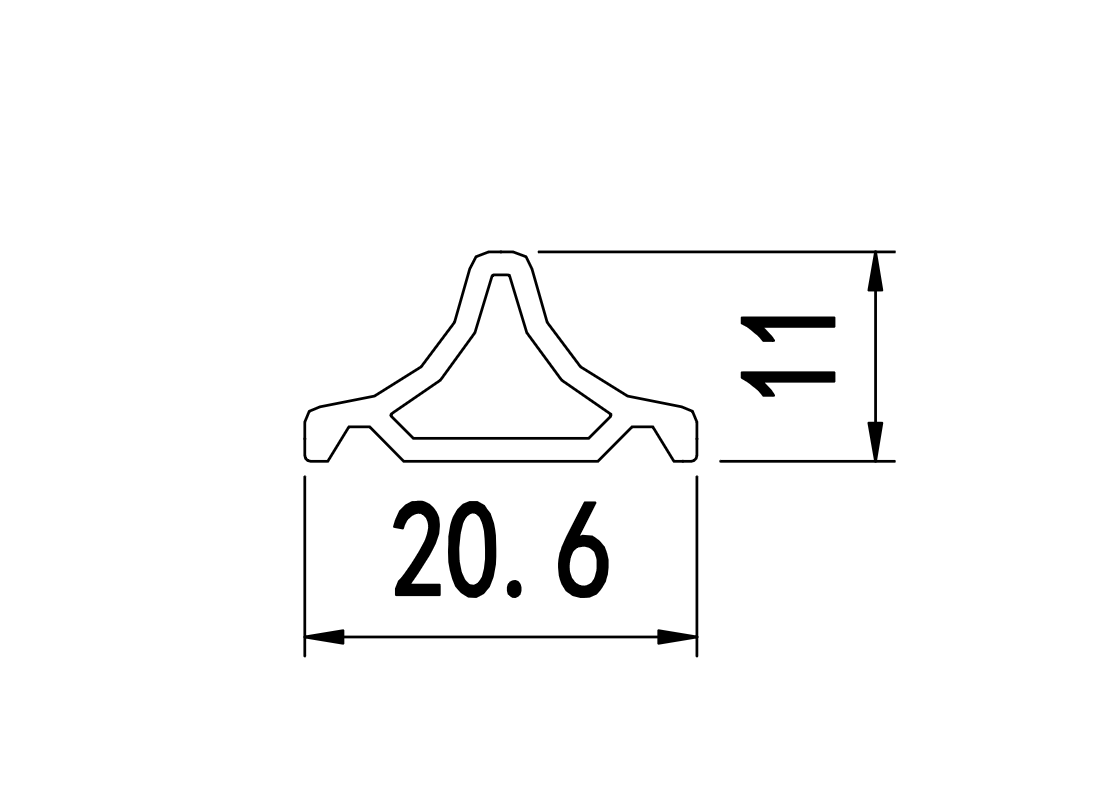

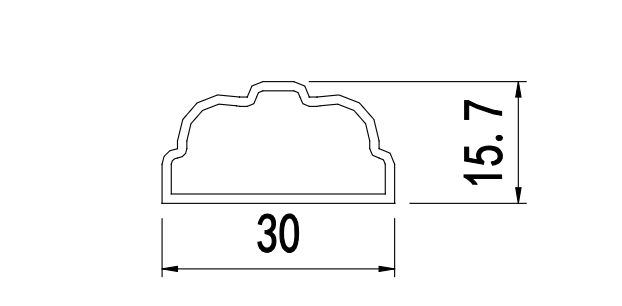

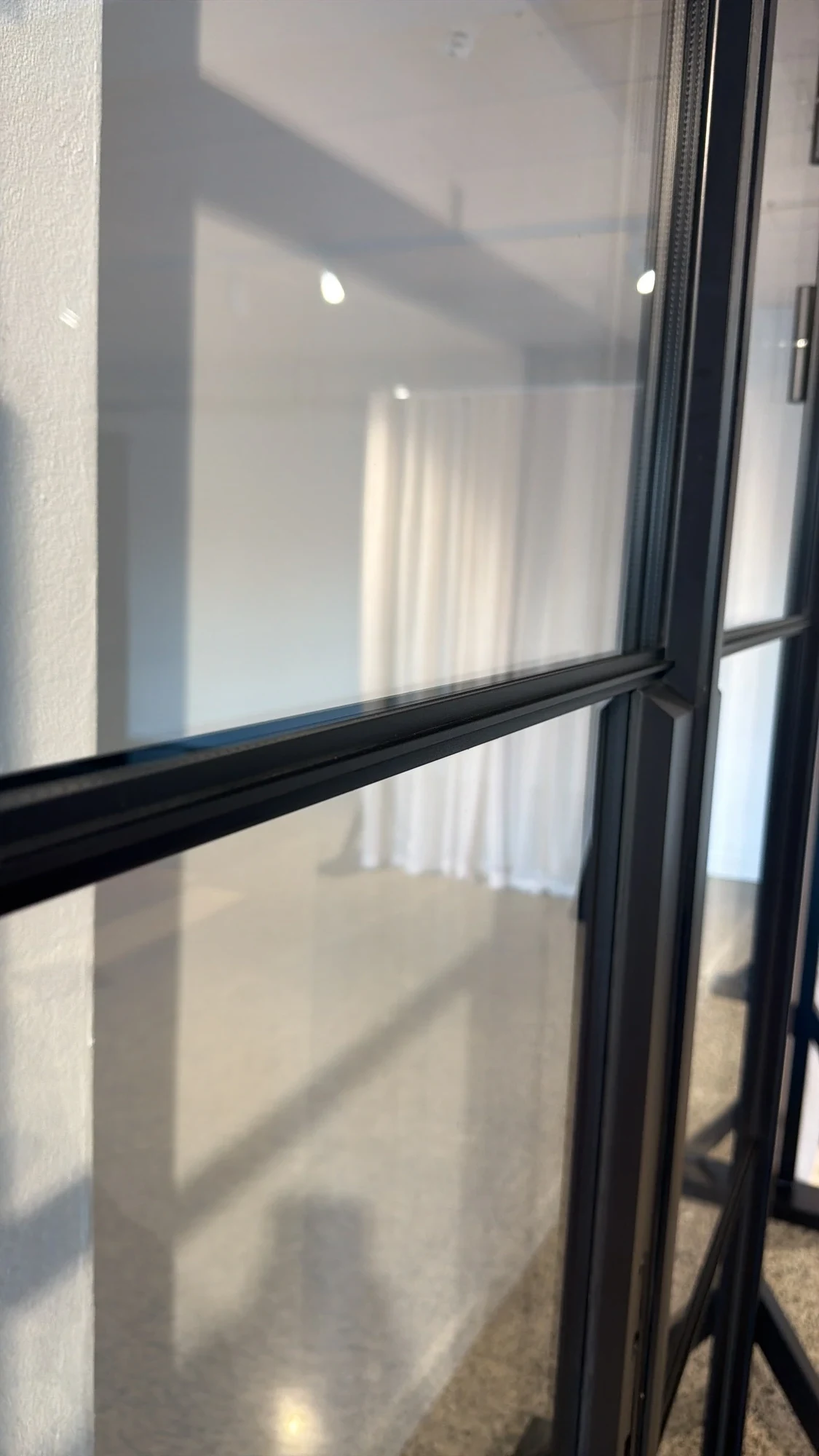

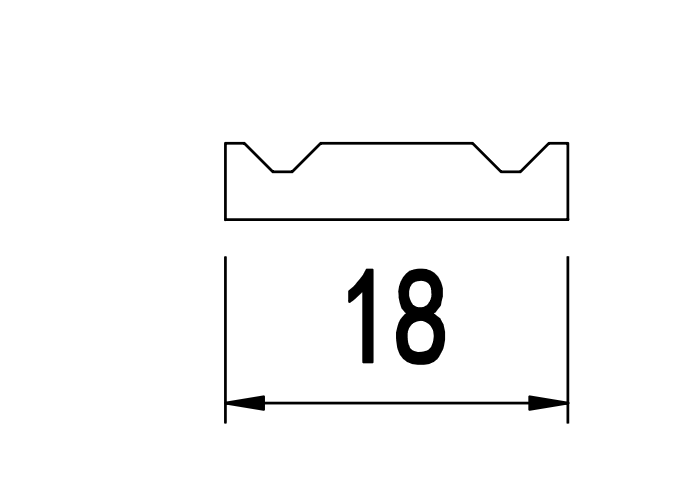

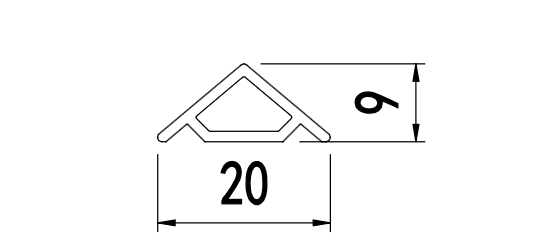

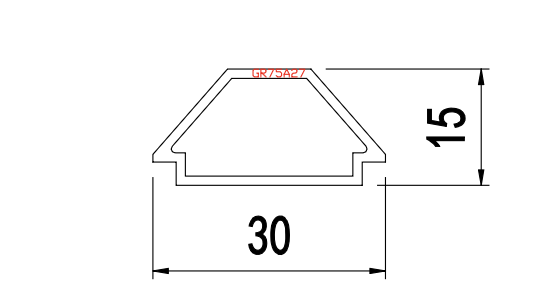

Divider Bar Configuration

Decorative astragals that clip onto the glass to divide it into lites. Every profile is machined from solid steel or aluminium and colour-matched to the frame.
